Video Surveillance Equipment
Fixed

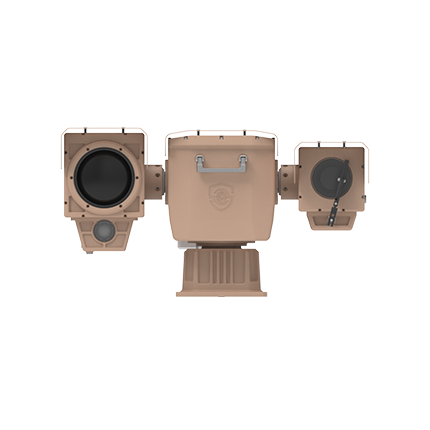

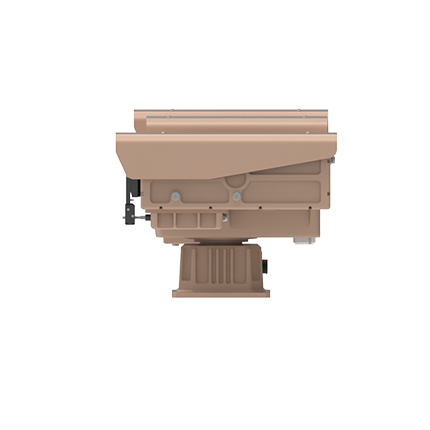

TORUSS-MR300ND-G
GOP Science Border System Performance Improvement Project (2025)
- Day and night monitoring and all-in-one motor/module detachable structure enhance security by applying TTA-certified camera.
- Secure security and operability through KS·KC certification and ONVIF compatibility.
- Features
-
- 24/7 monitoring through day and night cameras
- Camera module detachable structure for ease of maintenance
- Communication to camera/pantile drive shaft, simplification of built-in power connector components
- Simplified wiring and easy maintenance by applying controller integrated motor
- Enhance security with TTA-certified camera application
- KS environmental certification (high temperature, low temperature, weather resistance, salt resistance, waterproof dustproof), KC certification (electromagnetic waves)
- Interoperability with ONVIF protocol compatibility
Key Performance
1) EO camera
- Resolution: HD 1920×1080
- Image Sensor: ½" Type 2MP CMOS
- Focal Length: 270 mm or more (44x optical, 16x digital)
- Image improvement: NIR application, fog improvement function support (Defog), shaking correction (EIS), backlight correction (BLC, WDR)
- Installation of remote control rainwater removal wiper assembly
2) IR camera
- Resolution: VGA 640×480
- TTA Certified Products
- Focus distance: 30mm to 150mm (5x optical, 4x digital)
- Focus Control: Auto Focus / Manual Adjustment
3) Infrared Laser illuminator
- Maximum observation distance: 500 m or more
- Infrared output: 940 nm
- KC certification and safety certification (CLASS 3B)
Appearance and certification status
- Operating temperature (low/high temperature): -33°C to + 45°C
- KS C IEC 60529: 2013 (IP66)
- KC Electromagnetic Compatibility Certification (EMI/EMC)
- KS C IEC 60068-2-2-2 (High Temperature) KS C IEC 60068-2-1 (Low Temperature)
- KS C IEC 60068-2-52 (salt water, spray) KS C IEC 60068-2-61 (weather resistance)
- KS C IEC 60068-2-38 (temperature), 60068-2-30 (temperature and humidity)
- dimension: 752 (W) × 490 (H) × 415 (D)
- Weight: About 68 kg
